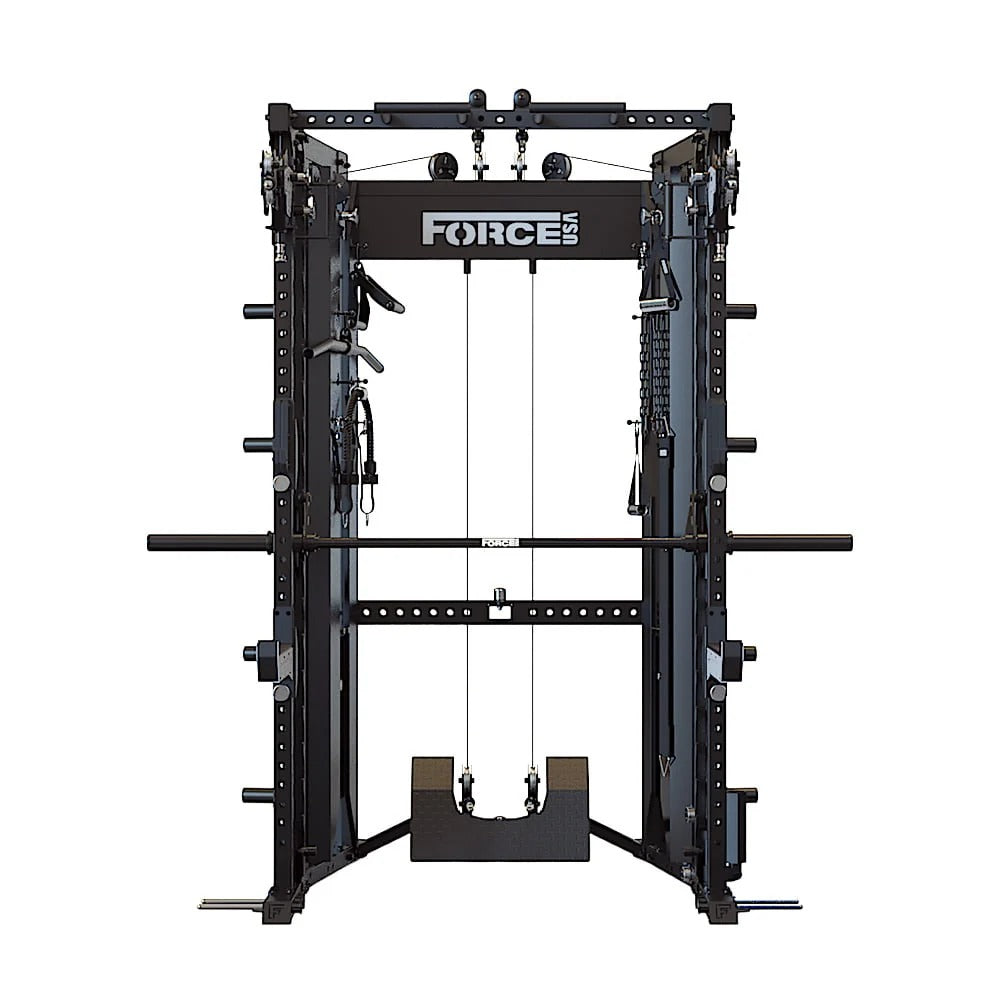

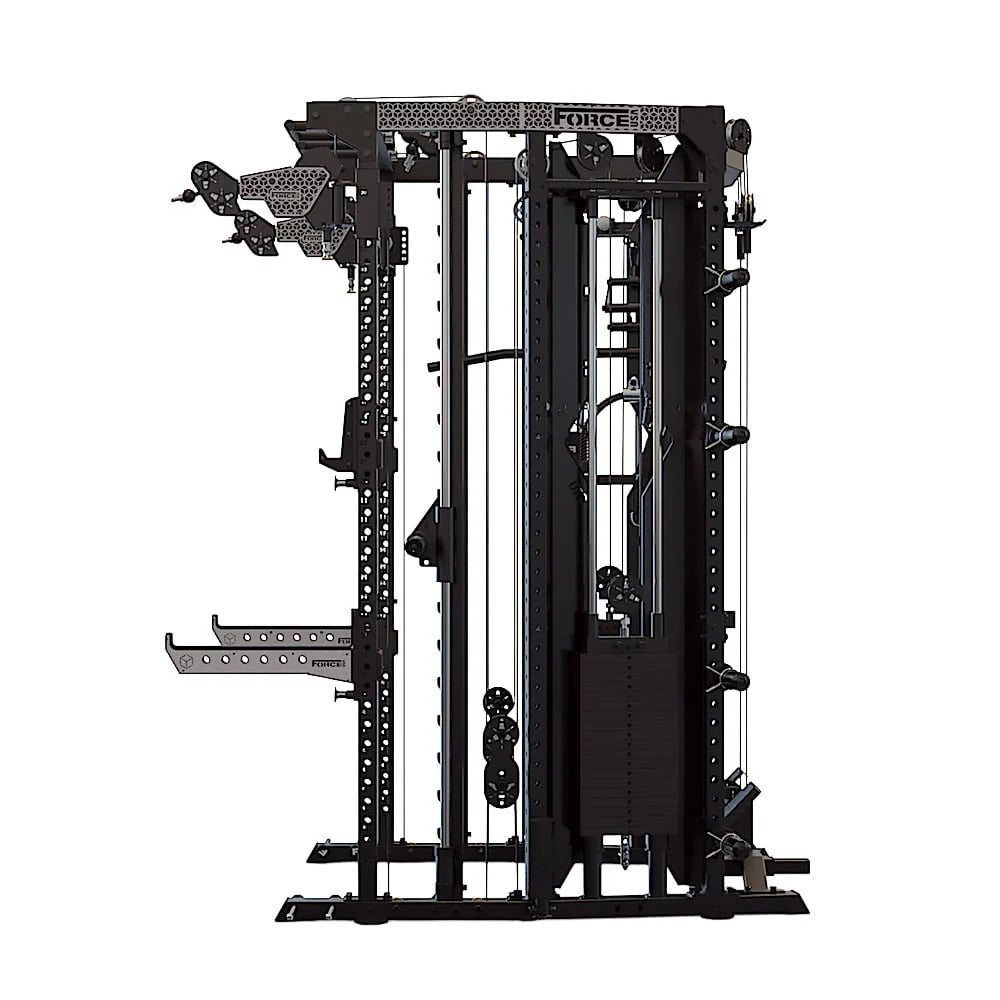

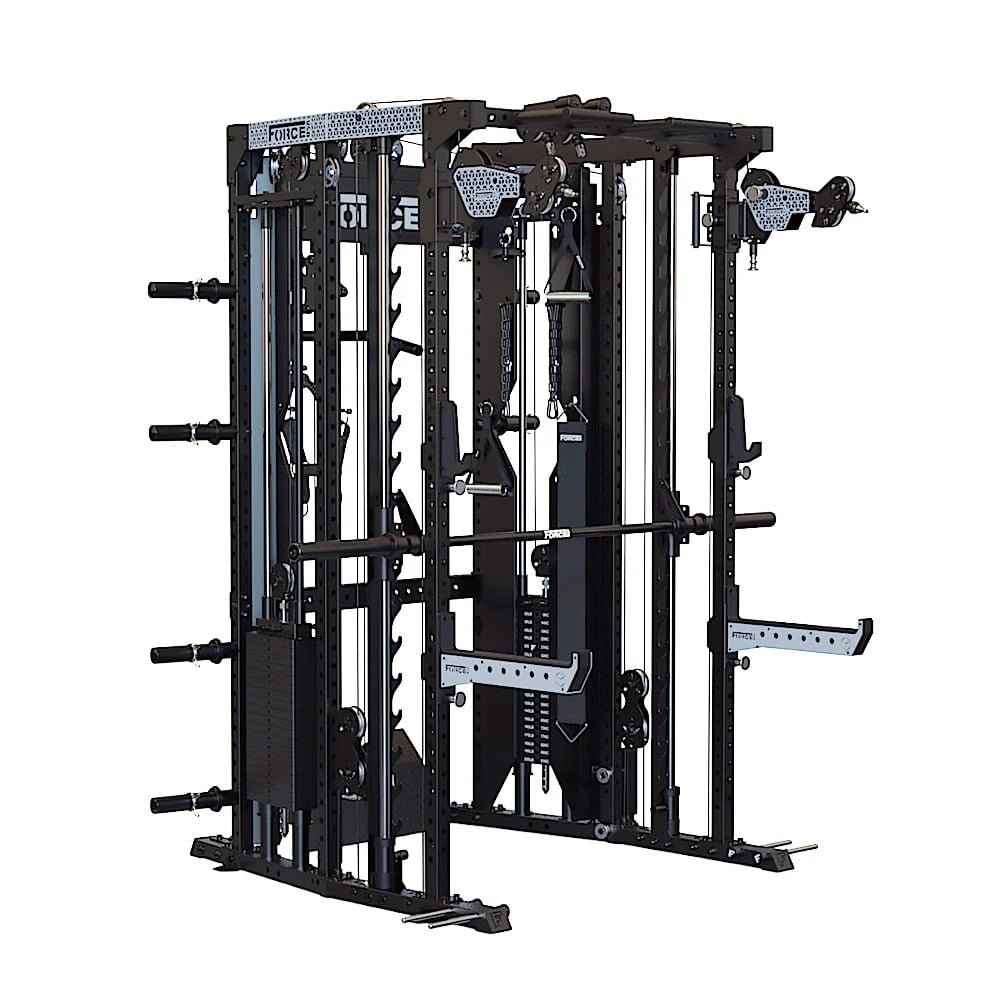

Force USA C10 All-In-One Trainer V2

Take your strength training to the next level with the Force USA C10 All-In-One Trainer. Designed for versatility and performance, it features an innovative Cornerstone station with six pulley connections and dual Freestyle Pulley Arms, allowing you to perform a wide range of exercises from multiple angles without constant machine adjustments. Built with commercial-grade 11-gauge steel, the C10 delivers exceptional durability and stability in a compact, space-efficient design. The ultimate all-in-one solution for building a powerful, professional-quality workout space.

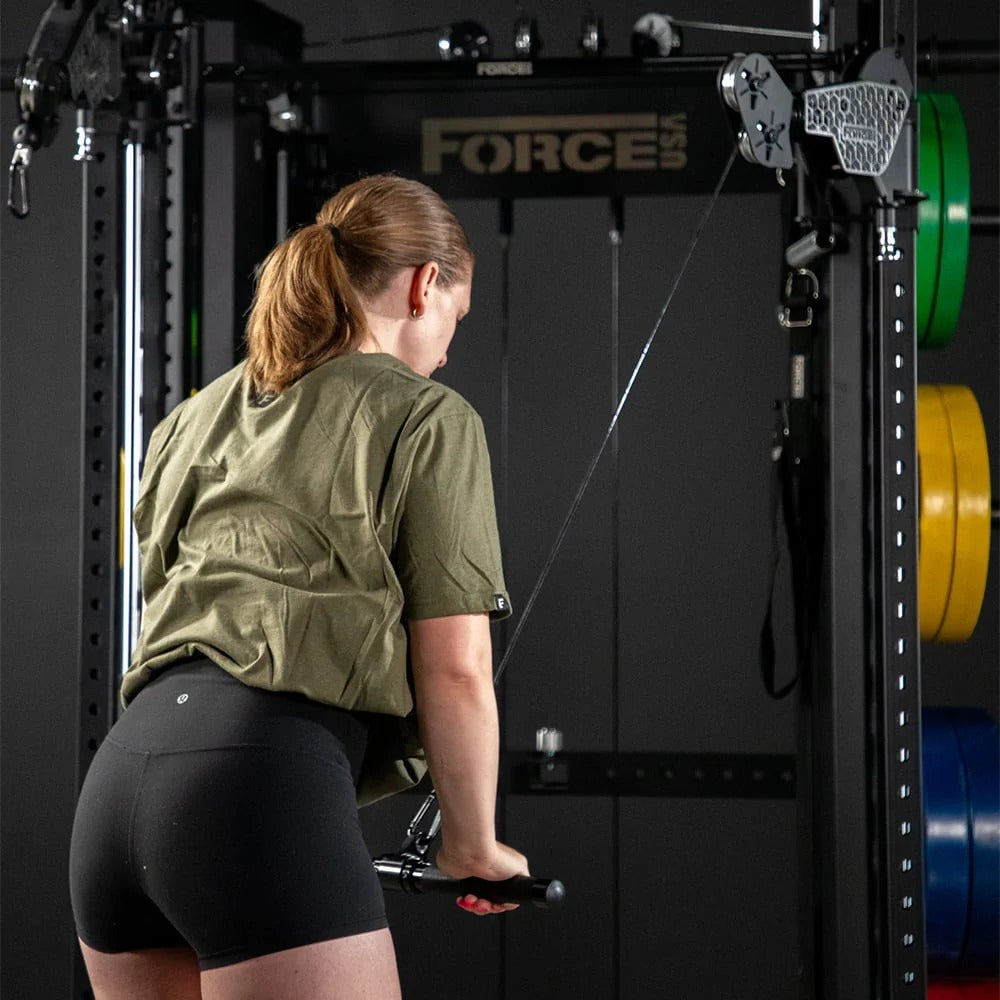

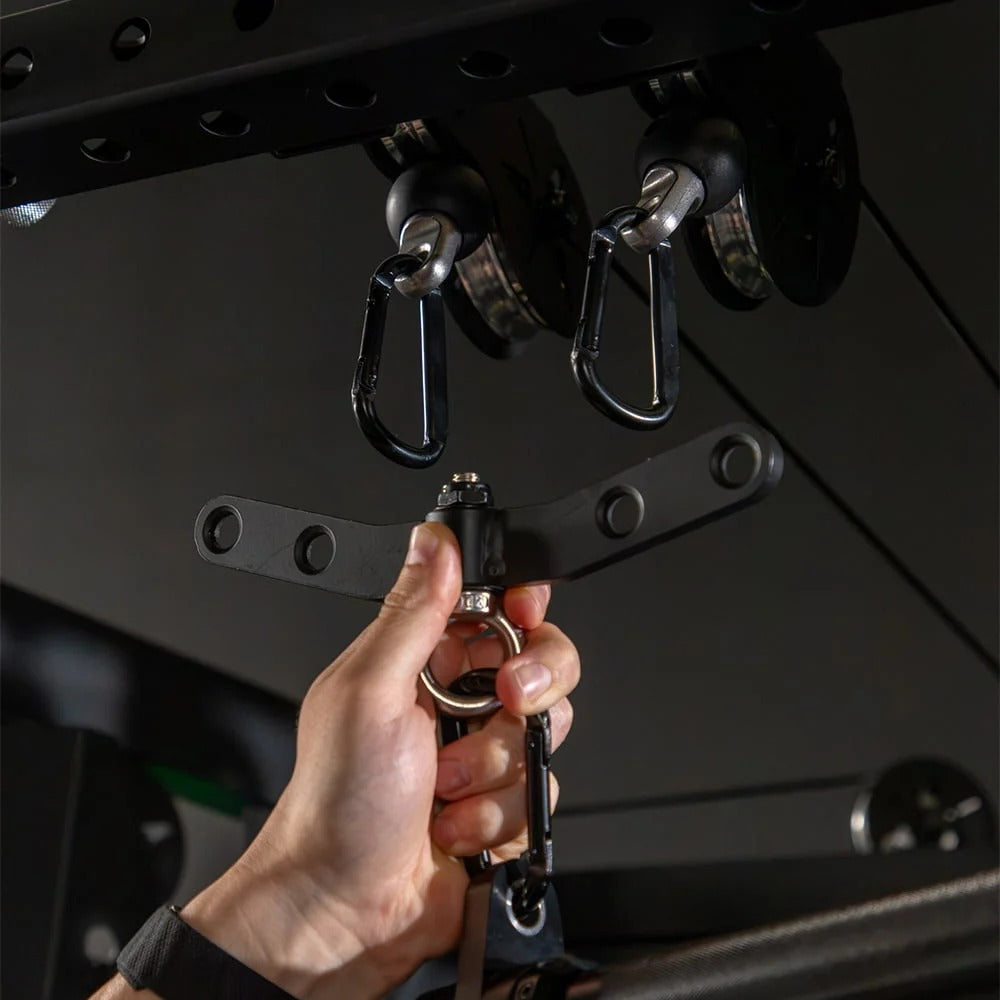

	Unmatched Versatility with the Cornerstone Six-Pulley System The Force USA C10 features an innovative Cornerstone station with six independent pulley connections in a compact design. Combining high and low center cable stations with dual Freestyle Pulley Arms, it offers three cable ratios without the need to reroute cables. The lower center cables provide a 1:1 ratio, which can be combined to increase resistance, while the upper center cables and Freestyle Pulley Arms operate at a smooth 2:1 ratio. From heavy lat pulldowns to functional cross-body movements, enjoy seamless transitions between exercises.

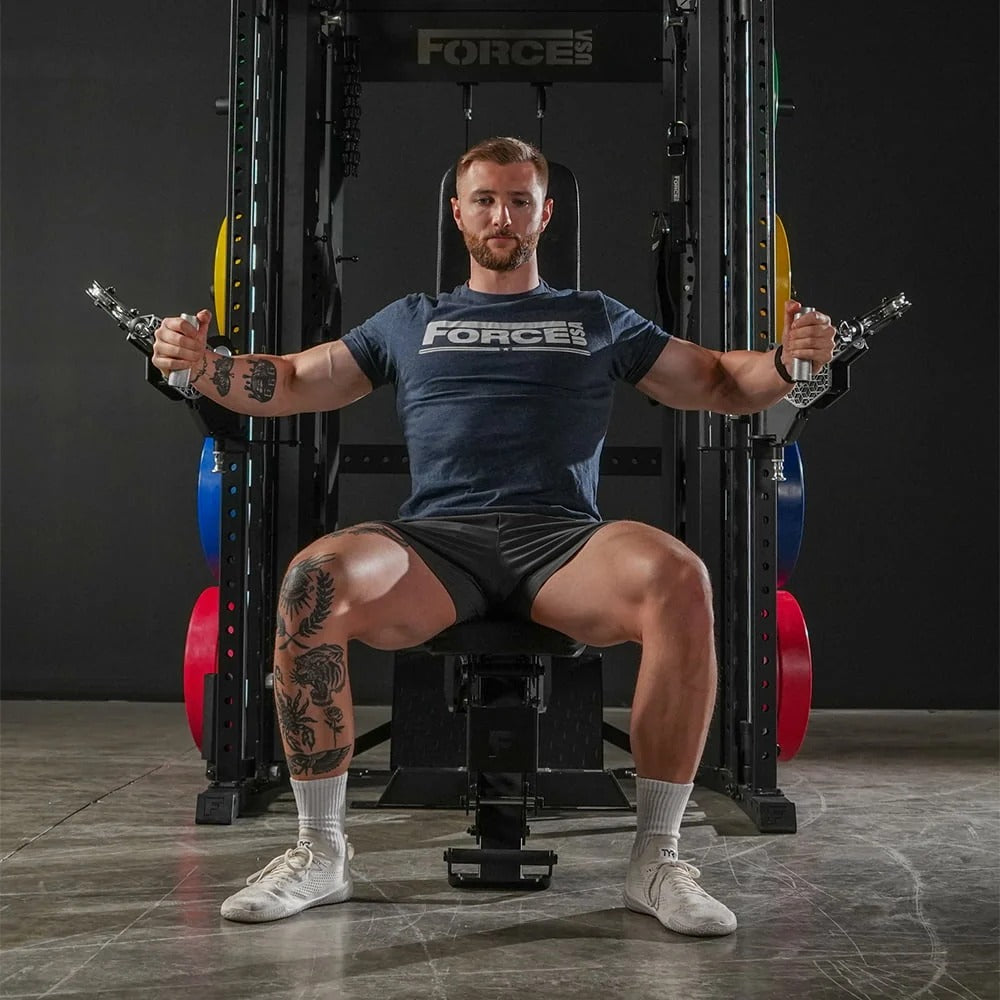

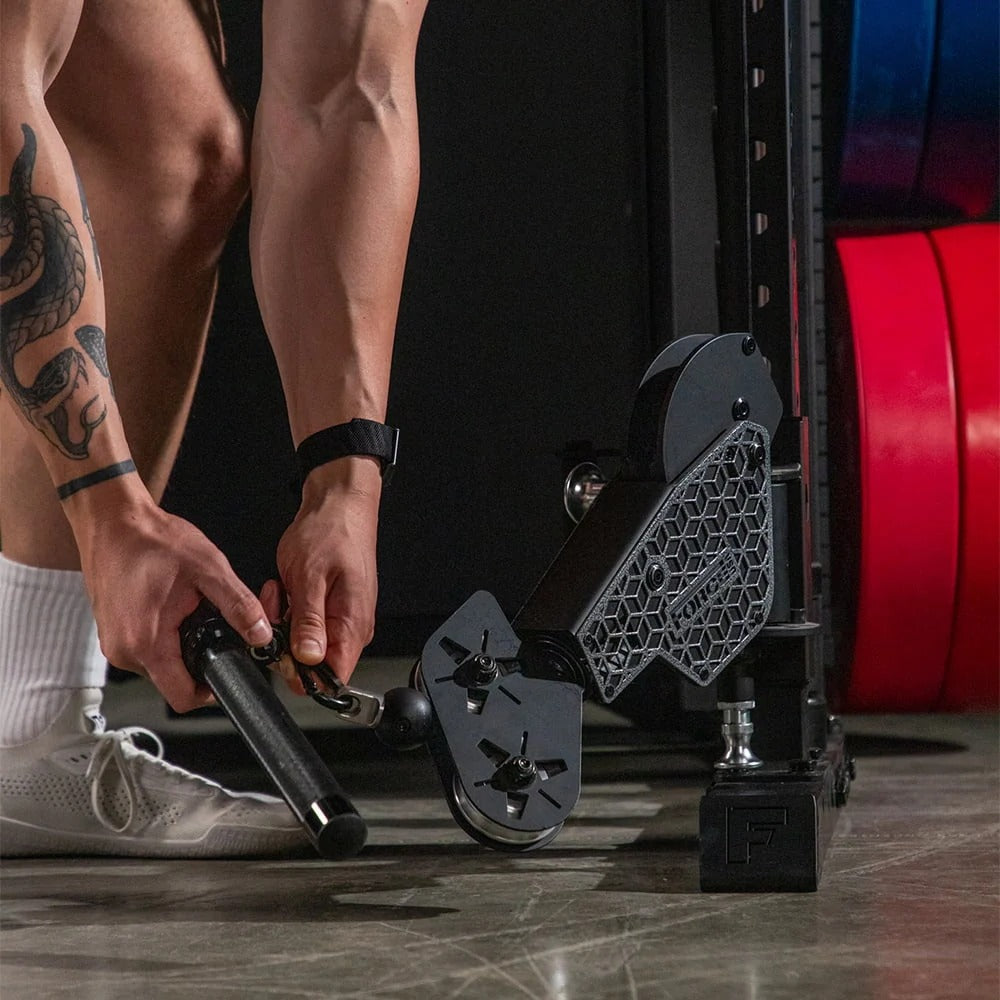

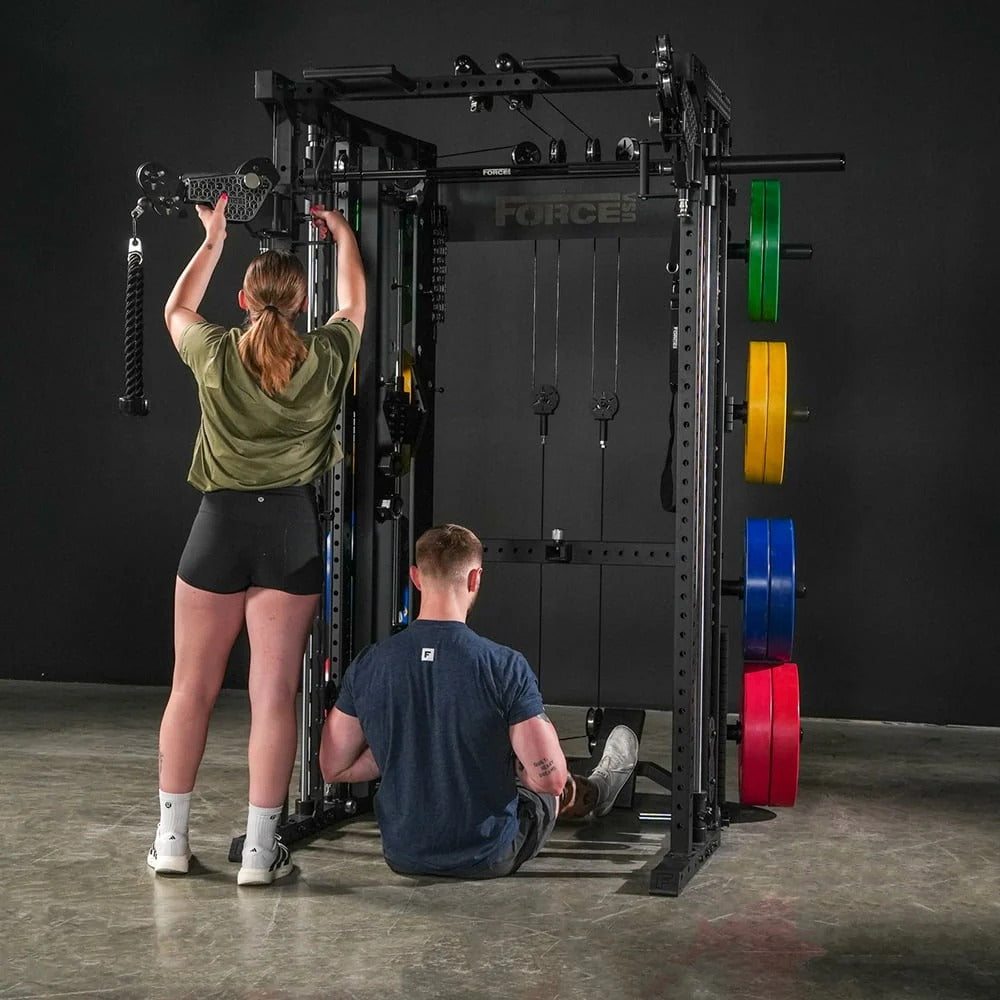

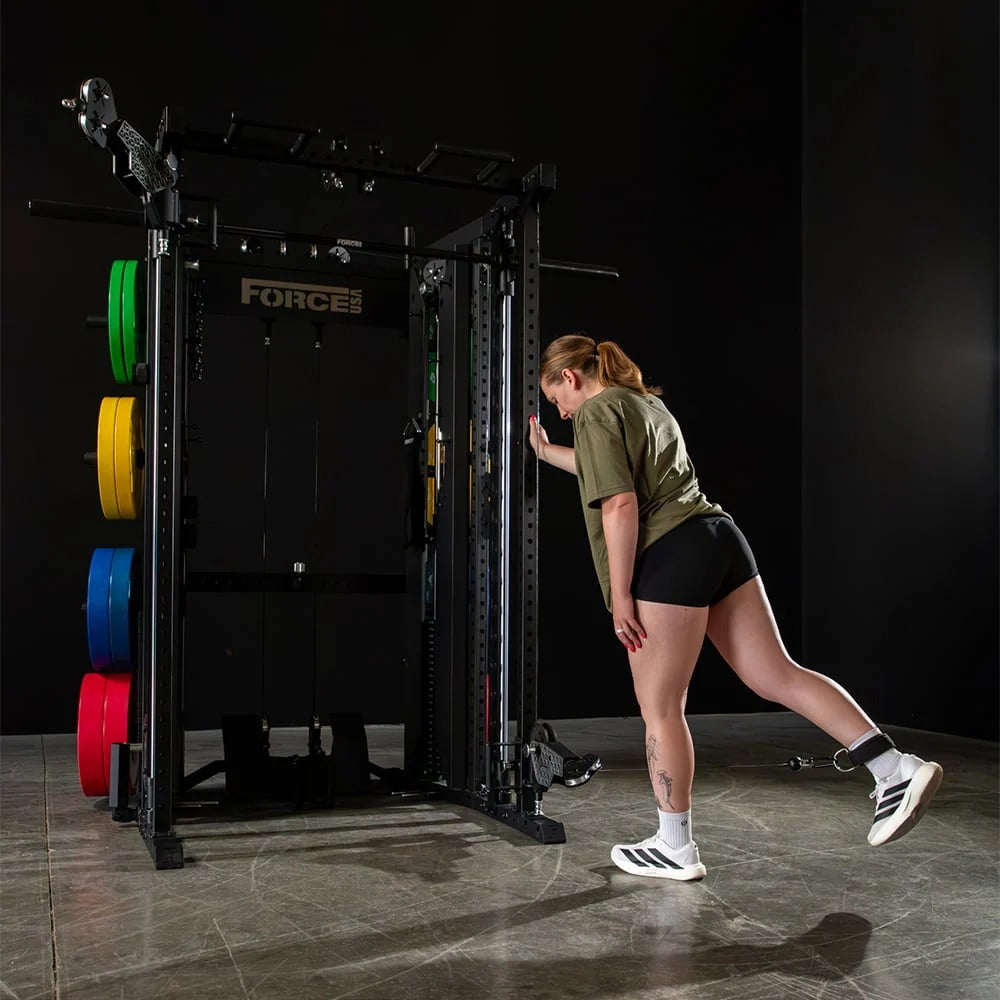

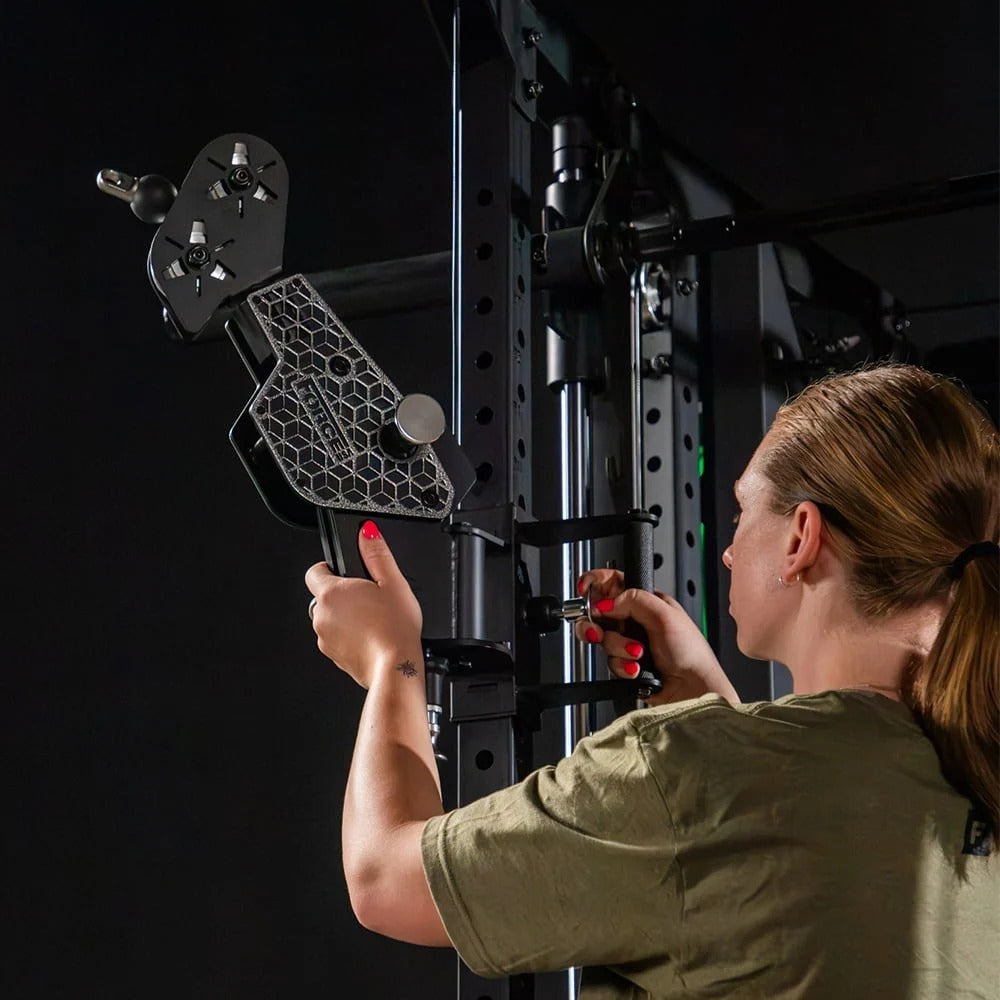

	Advanced Freestyle Pulley Arms with Flow and Lock Modes Designed for versatile strength and functional training, the dual Freestyle Pulley Arms feature two operating modes. Lock Mode secures the arms in a stable position using a heavy-duty pop-pin, making them ideal for controlled strength exercises. Flow Mode allows the arms to move through a 180-degree range, supporting rotational, athletic, and sport-specific movements. This adaptable design helps you perform a wide variety of cable exercises with greater freedom of movement.
	Upgradeable Dual Weight Stacks with Micro-Adjustments The C10 comes equipped with two 91 kg (200 lb) weight stacks, each upgradeable to 113 kg (250 lb). When both stacks are connected through the 1:1 center cable system, you can access up to 227 kg (500 lb) of combined resistance. A built-in 2.3 kg (5 lb) micro-adjustment plate allows for smaller weight increments, helping you progress gradually and fine-tune your training intensity.

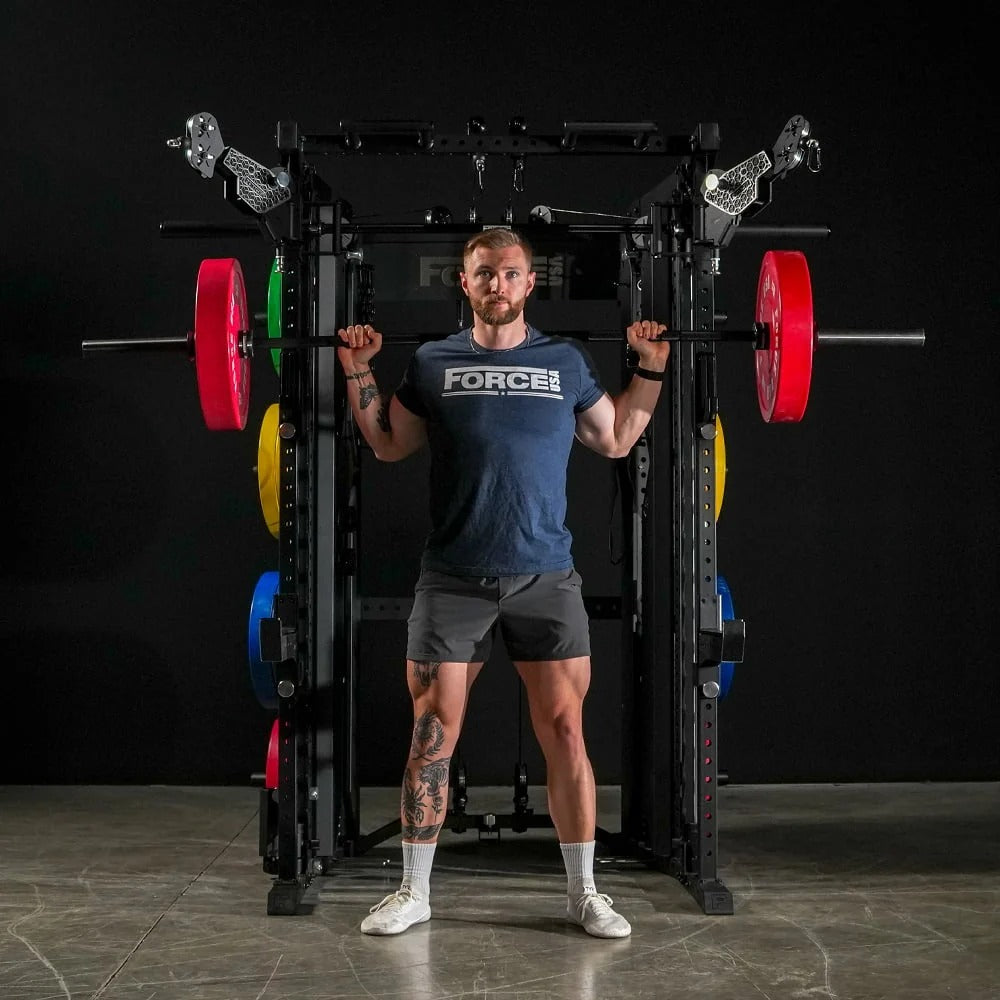

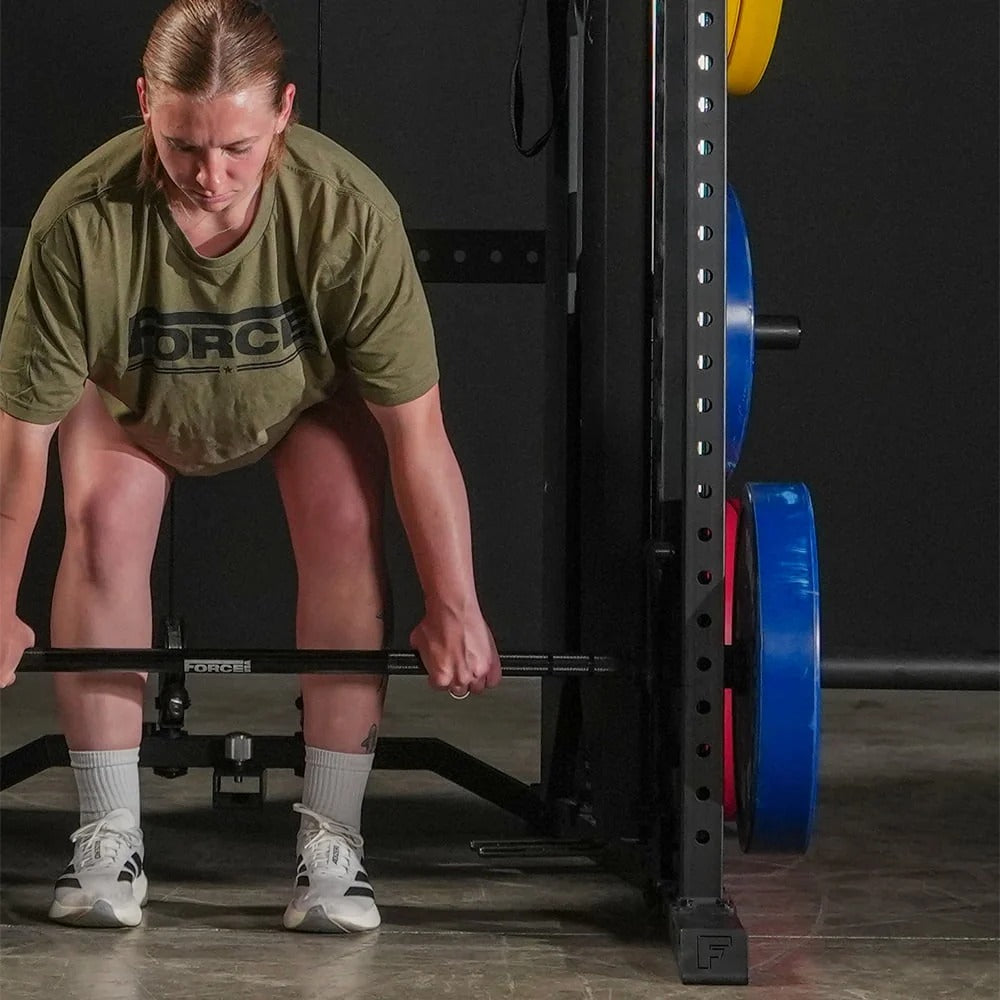

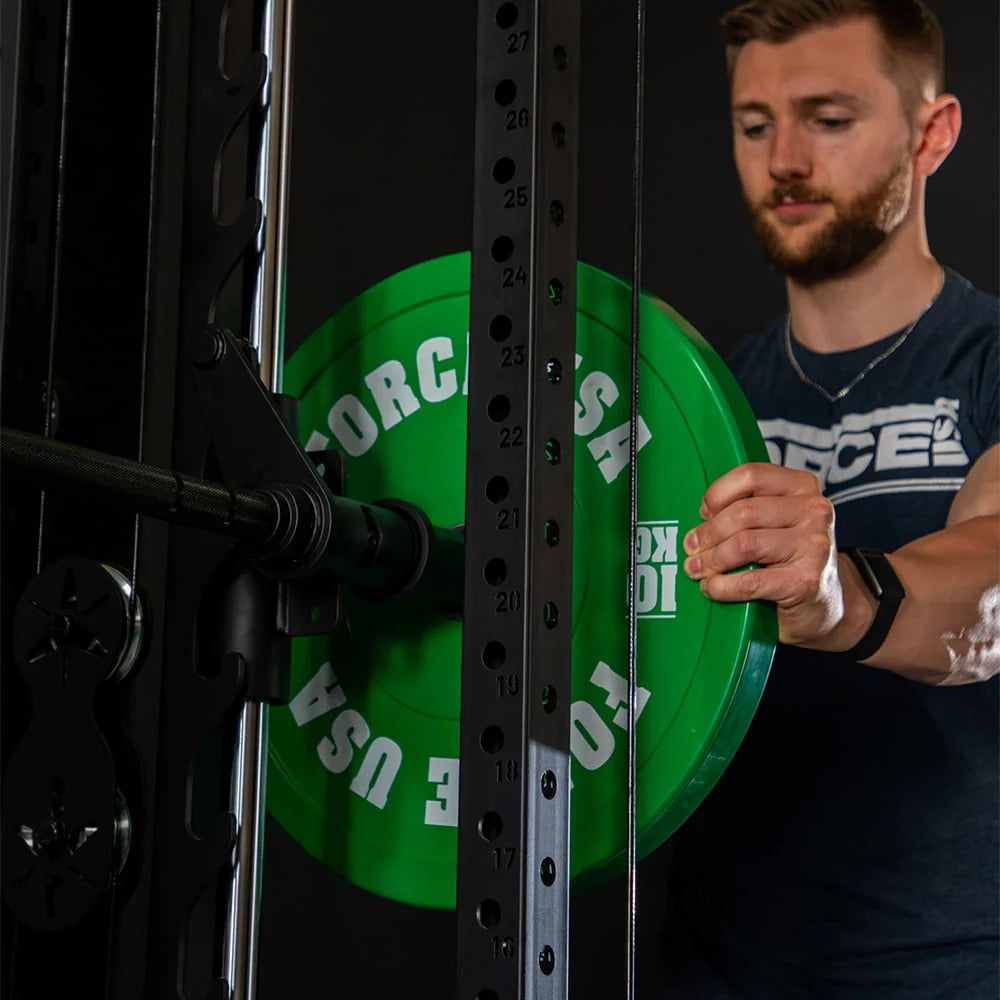

	Heavy-Duty Single-Track Smith Machine for Enhanced Lifting The innovative Single-Track Smith Machine features a heavy-duty guide rod housed within a rigid 5-gauge steel column for dependable stability during demanding lifts. Its 16 kg (35 lb) bar includes professional-style knurling and rotating sleeves to deliver a barbell-inspired training experience. With an ultra-low starting position, the machine accommodates a greater range of motion for exercises such as deadlifts, rows, and low-rack pulls.
	Robust 11-Gauge Steel Construction with a Space-Saving Design Built for demanding training environments, the C10 features a heavy-duty frame constructed from 11-gauge steel uprights. The frame includes a 16 mm (5/8-inch) hole pattern and 51 mm (2-inch) laser-cut spacing on all four sides, supporting a wide range of compatible attachments and customisation options. Its six-post structure and flush base frame provide a stable training platform, even on slightly uneven flooring. With 112 cm (44 inches) of internal working space and a compact external frame width of 122 cm (48 inches), the C10 maximises training versatility while making efficient use of your available space.

SPECIFICATIONS

• Exterior Dimensions With Smith Machine: 195.5 cm W x 142 cm D x 222 cm H (77" W x 56" D x 87.5" H)
• Exterior Dimensions Without Smith Machine: 122 cm W x 142 cm D x 222 cm H (48" W x 56" D x 87.5" H)
• Interior Dimensions: 112 cm W x 122 cm D x 211 cm H (44" W x 48" D x 83" H)

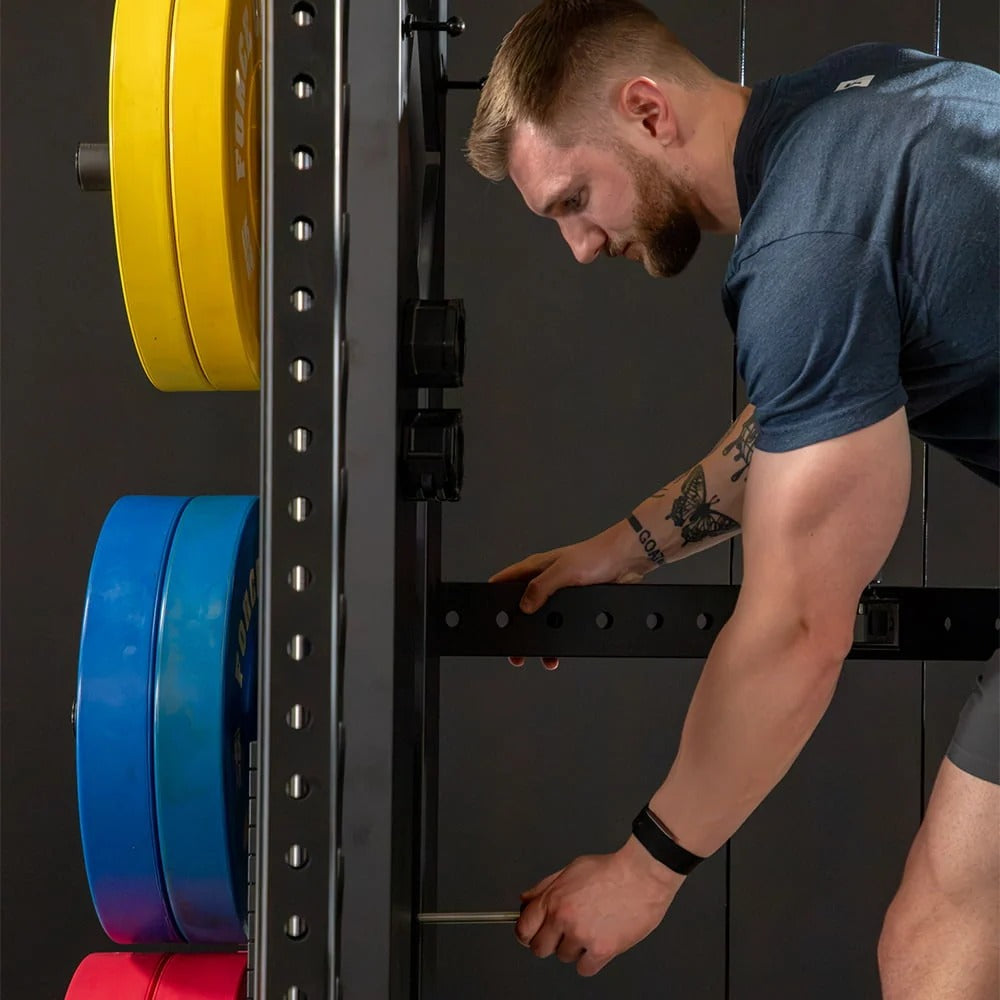

• Uprights: Square 11-gauge steel with 16 mm (5/8") hole pattern and 51 mm (2") laser-cut spacing on all sides
• Frame Structure: Six-post structure with flush, self-adjusting base frame
• Pulley Connections: Six pulley connections consisting of dual Freestyle Pulley Arms plus high and low center cable stations
• Bottom Center Cables Ratio: 1:1 ratio or connected to double resistance
• Top Center Cables Ratio: 2:1 ratio
• Freestyle Pulley Arms Ratio: 2:1 ratio with Lock Mode and Flow Mode (180 degrees of freedom)
• Maximum Cable Resistance: Up to 227 kg (500 lbs), center-connected
• Dual Weight Stacks: 91 kg (200 lbs) per side, upgradable to 113 kg (250 lbs) per side
• Maximum Stack Resistance: 227 kg (500 lbs) resistance with both 113 kg (250 lbs) stacks connected at 1:1
• Micro Adjustment Plate: Built-in 2.3 kg (5 lbs) plate
• Smith Machine Bar Weight: 16 kg (35 lbs) integrated bar weight
• Smith Machine Knurling: Professional standard knurling with spinning sleeves
• Smith Machine Architecture: 5-gauge steel Single Track architecture with guide rod in a single column
• Smith Machine Range: Industry-leading lowest starting position

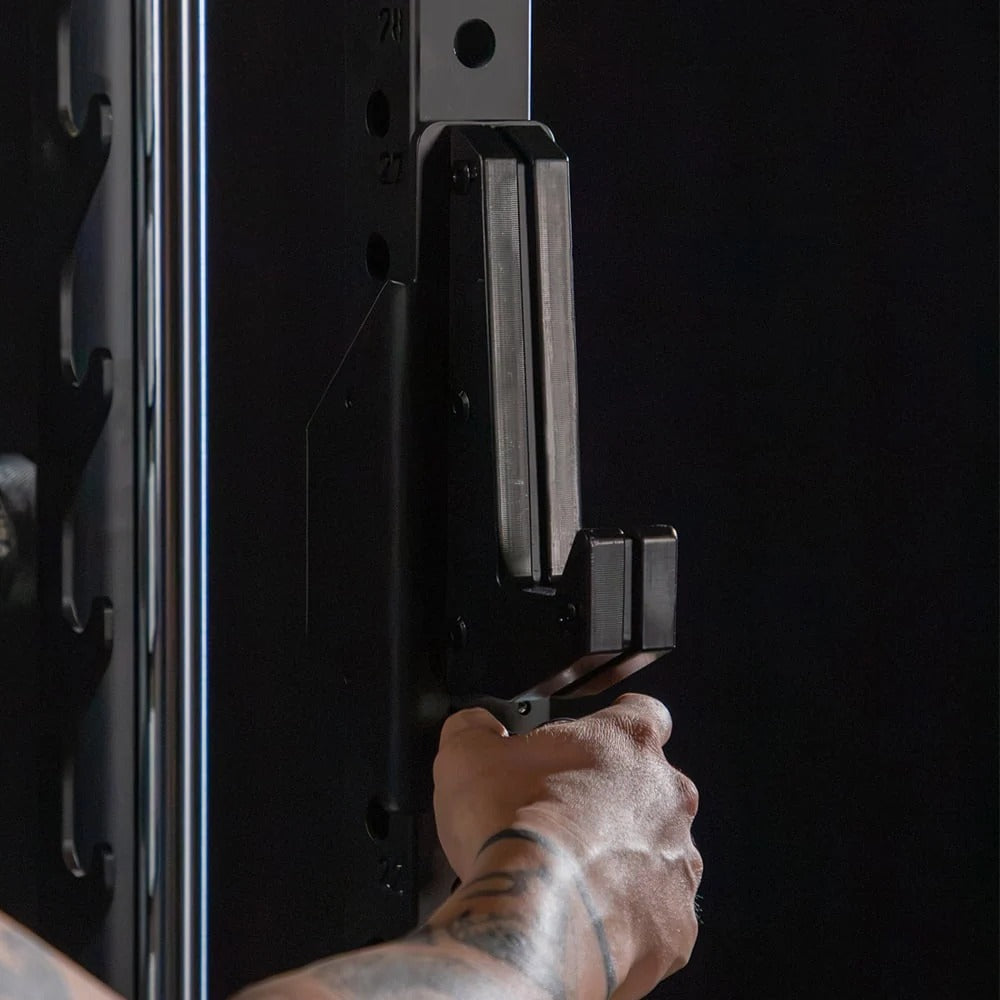

• J Cups: Pin-Lock J-cups that snap into place, sit flush, and feature UHMW inserts
• Spotter Arms: Locking pin engagement with UHMW inserts
• Minimum Ceiling Height: 254 cm (8'4" / 100") for full pull-up
• Maximum User Height: 216 cm (7'1" / 85")
• Cable Specification: 6.2 mm nylon-coated mil-spec aircraft quality tested to 907 kg (2,000 lbs)
• Unit Weight Rating: 450 kg (992 lbs)
• Smith Machine Weight Rating: 350 kg (772 lbs)
• Chin Up Weight Rating: 350 kg (772 lbs)

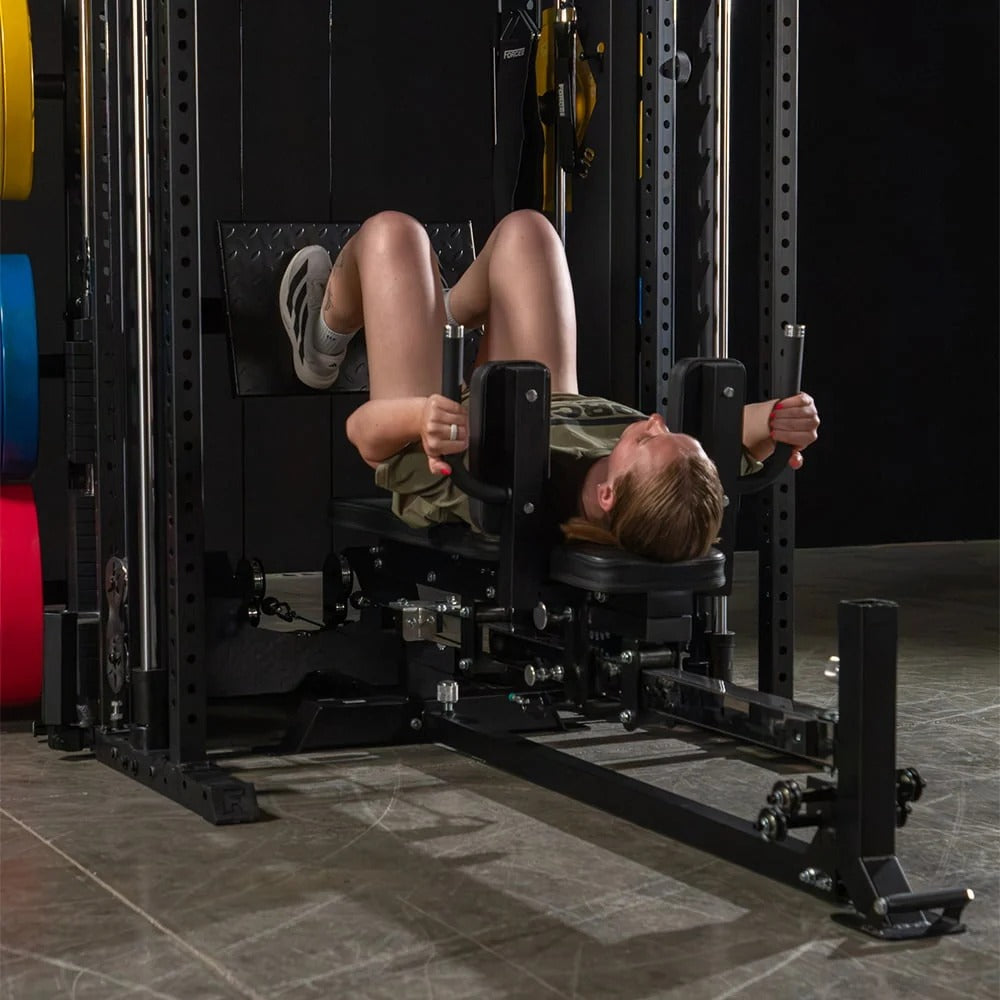

• Optional Sliding Bench Stations: Five stations consisting of leg press, hack squat, leg curl, leg extension, and preacher curl
• Optional Sliding Bench Resistance: Up to 227 kg (500 lbs) of resistance through lower center cable system
• Optional Sliding Bench Storage: Stores upright against the wall
• Total Shipping Weight: 505 kg (1,114 lbs) across 2 boxes
• Shipping Box 1 Dimensions: 230 x 98 x 40 cm (91 x 39 x 16 in) weighing 290 kg (640 lbs)
• Shipping Box 2 Dimensions: 70 x 59 x 20.5 cm (28 x 24 x 9 in) weighing 215 kg (474 lbs)
